Branching

Overview

Teaching: 15 min
Exercises: 0 min

Questions

• How can I use branching to make my workflow more robust?

Objectives

• Create a new branch in a repository.

• Create and merge a Pull Request on GitHub.

For this next step, you will work on your own, but please bear in mind that what is learnt can equally be applied to another user’s repository e.g. via GitHub.

The goal of this lesson is to create a new branch for a new feature, and then use GitHub’s interface to merge the changes from that branch into the main.

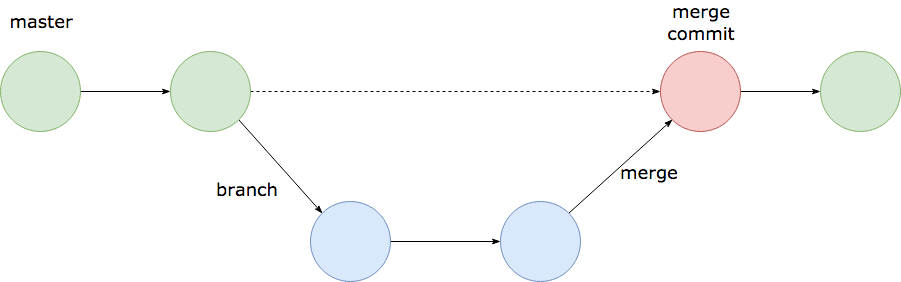

Conceptually, what we’re going to do is this:

When it comes to the merge step, we will use GitHub to open a Pull Request. This says “I’ve made a branch, now please pull the branch into main (via a merge)”. Using a Pull Request allows us (and the owner/other users of the repository) to see the changes that the branch contains. These can be reviewed and altered until satisfactory. Finally, the merge can be completed via the GitHub interface.

Firstly, ensure you are working on your repository:

$ cd ~/git-novice/planets

Next, ensure that you have the very latest version from GitHub:

$ git switch main
$ git pull origin main

To check that everything is up-to-date, we can use lots of options added to the basic git log command to show us more detail:

$ git log --oneline --branches --graph --decorate

* 83f3f03 (HEAD -> main, origin/main) Discuss concerns about Mars' climate for Mummy
* 2e764a3 Add concerns about effects of Mars' moons on Wolfman
* 0f787d0 Start notes on Mars as a base.

This shows us that HEAD is at main (denoted by the arrow), and origin/main is at the same point in history.

Now that we’re happy that we’re up to date, we’re going to make a new branch that is based on the latest commit on main. Branch names should be descriptive, so new_branch is not usually a good choice.

$ git branch new_branch

Nothing looks to have changed, but if we again use git log --oneline --branches --graph --decorate we see that new_branch is now added.

* 83f3f03 (HEAD -> main, origin/main, new_branch) Discuss concerns about Mars' climate for Mummy
* 2e764a3 Add concerns about effects of Mars' moons on Wolfman
* 0f787d0 Start notes on Mars as a base.

But be careful! If we run git status we see On branch main. So we have created a new branch called new_branch, but are not on the branch yet. The git log command above also indicates this, because HEAD is still pointing to main, not to new_branch.

We switch to the new branch:

$ git switch new_branch

Switched to branch 'new_branch'

$ git log --oneline --branches --graph --decorate

* 83f3f03 (HEAD -> new_branch, origin/main, main) Discuss concerns about Mars' climate for Mummy
* 2e764a3 Add concerns about effects of Mars' moons on Wolfman
* 0f787d0 Start notes on Mars as a base.

We’re now on the new branch, and so HEAD -> new_branch.

Now it’s time to make some changes!

Make some changes to mars.txt, or perhaps add a new file. Then add and commit these changes. In this example, I’ve added notes on Jupiter to jupiter.txt:

* ef25bc8 (HEAD -> new_branch) Added notes ruling out Jupiter as a destination.
* 83f3f03 (origin/main, main) Discuss concerns about Mars' climate for Mummy
* 2e764a3 Add concerns about effects of Mars' moons on Wolfman
* 0f787d0 Start notes on Mars as a base.

Note that this latest commit is on new_branch, but it hasn’t affected main.

Let’s use GitHub’s Pull Request mechanism to merge these changes from new_branch into main.

$ git push

fatal: The current branch new_branch has no upstream branch.
To push the current branch and set the remote as upstream, use

    git push --set-upstream origin new_branch

What’s happened here? git doesn’t know which branch to push our changes to in the GitHub repository (the “upstream branch”). But it suggests what it thinks is most likely, and it’s what we want in this case, so we go ahead and follow the advice:

$ git push --set-upstream origin new_branch

Counting objects: 3, done.
Delta compression using up to 4 threads.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 365 bytes | 365.00 KiB/s, done.
Total 3 (delta 0), reused 0 (delta 0)
To github.com:spco/planets.git
 * [new branch]      new_branch -> new_branch
Branch new_branch set up to track remote branch new_branch from origin.

We can check what’s changed:

$ git log --oneline --branches --graph --decorate

* ef25bc8 (HEAD -> new_branch, origin/new_branch) Added notes ruling out Jupiter as a destination.
* 83f3f03 (origin/main, main) Discuss concerns about Mars' climate for Mummy
* 2e764a3 Add concerns about effects of Mars' moons on Wolfman
* 0f787d0 Start notes on Mars as a base.

git is now keeping track of a branch called origin/new_branch.

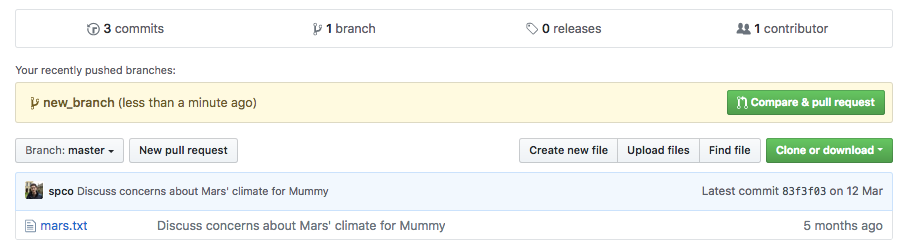

Now switch to the main page of your repo on GitHub. You’ll see a yellow banner showing that GitHub has noticed you’ve added a branch. Click on the “Compare & pull request” button.

This page now shows you the changes in this branch. You can have multiple commits, and multiple edits to multiple files. Note that allong the top you can see (and edit) which branches are to be merged into which others (in our case, new_branch is to be merged into main).

When you’re happy with the changes, click “Create pull request”.

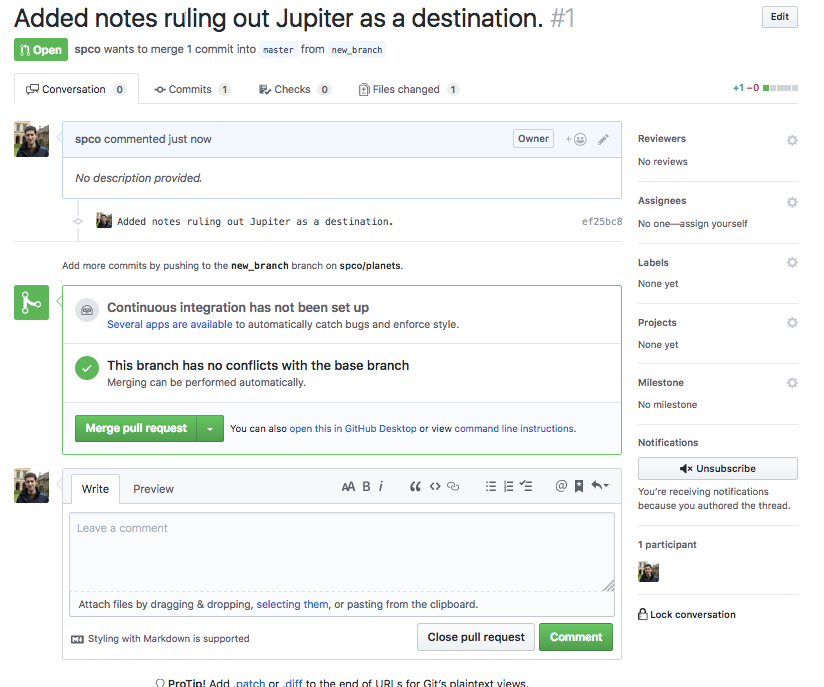

You’re now on a Pull Request page:

Take a few minutes to look around. You can add general comments, or you can inspect the individual commits, and add comments to lines in the commits. You can tag other users on GitHub with the @ symbol, e.g. @spco. Explore the contents of the “Conversation / Commits / Checks/ Files Changed” tabs across the top.

Add more commits to an open Pull Request

Now that your Pull Request is open, you can add further commits to the branch, and then use git push to add them to the Pull Request automatically. Try it now. Afterwards, refresh the Pull Request page to see the new commit has appeared at the bottom of the timeline.

Review Changes and Merge

Note that the “Merge pull request” button has a drop-down menu to the right, which allows you to select 3 different types of merge - “Create a merge commit”, “Squash and merge” or “Rebase and merge”. These all have slightly different behaviours and are appropriate in different contexts, but for now “Create a merge commit” is fine. When you’re happy that the contents of the Pull Request are as you want them, click the “Merge pull request” button, then “Confirm merge”.

Click on the “code” tab at the top of the page to go back to the main page, and check that your changes from that branch have now been correctly merged into main.

Congratulations! You’ve merged your first Pull Request!

Finally, once we’ve mergeed our branch on GitHub, we need to clean up on our local repository.

$ git switch main

Switched to branch 'main'
Your branch is up-to-date with 'origin/main'.

$ git pull origin main

remote: Counting objects: 1, done.
remote: Total 1 (delta 0), reused 0 (delta 0), pack-reused 0
Unpacking objects: 100% (1/1), done.
From github.com:spco/planets
 * branch            main     -> FETCH_HEAD
   83f3f03..b97bc42  main     -> origin/main
Updating 83f3f03..b97bc42
Fast-forward
 jupiter.txt | 1 +
 1 file changed, 1 insertion(+)
 create mode 100644 jupiter.txt

$ git log --oneline --branches --graph --decorate

*   b97bc42 (HEAD -> main, origin/main) Merge pull request #1 from spco/new_branch
|\
| * ef25bc8 (origin/new_branch, new_branch) Added notes ruling out Jupiter as a destination.
|/
* 83f3f03 Discuss concerns about Mars' climate for Mummy
* 2e764a3 Add concerns about effects of Mars' moons on Wolfman
* 0f787d0 Start notes on Mars as a base.

The last piece of tidying-up is to remove the old branch, if we’re happy that it is no longer needed.

$ git branch -d new_branch

Deleted branch new_branch (was ef25bc8).

Key Points

• git branch branch-name creates a new branch based at the current location.

• git push --set-upstream origin branch-name sets origin/branch-name as the upstream branch of branch-name.
